3 DBI TUNED ANTENNA (US 915)
ACTIVE COUPON - ADDITIONAL 10% OFF - MCGILL3DBI
*Orders over 50; please send email for bulk drop-shipping options.*
Need cables? We have cables!
You WILL need a cable for this antenna if you do not already have one! Bobcats included cable is NOT compatible.
LMR-400 - Hotspot to Antenna (Long Cables)
LMR-240 - Hotspot to Antenna (Short Cables)
LMR-240 - RaK Enclosure to Antenna

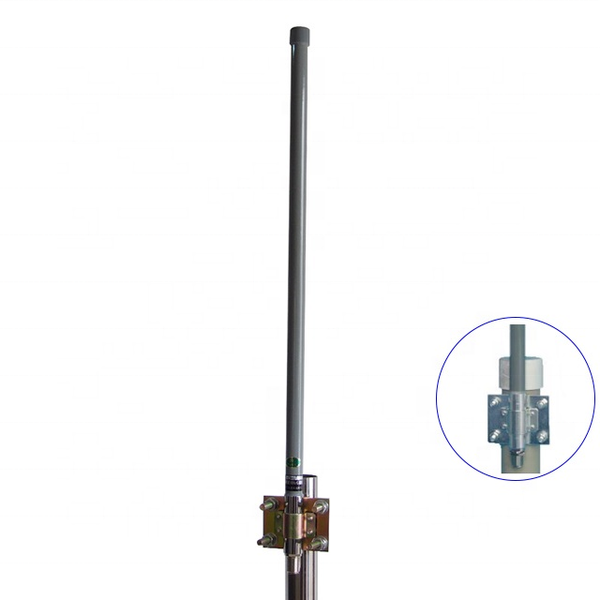

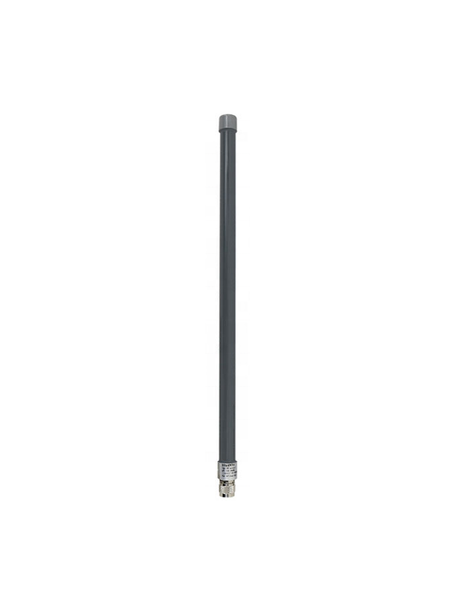

New Optimized Performance Helium Network Antennas from McGill Microwave Systems Ltd
McGill Microwave Systems introduce the 3dBi High Performance Antennas for use with the Helium Network offering superior Power Transmission compared to other commercially available alternative non optimized VSWR Antenna designs.
This new Antenna design has been specifically tuned to operate with peak performance over only the frequency band of interest to USA/Canada Helium Hotspot operators – the US915 frequency band.
Most commercially available Helium Hotspot Antenna designs available today are designed to be universal – meaning that the one product has been designed to cover both the European EU868 and US915 Frequency bands – resulting in designs which may be non-optimized for either frequency range.
We also have different optimized products with tuned peak performance for the different European EU868 Frequency Band for UK/European customers.
These optimized Antennas feature a superior VSWR performances of 1.5:1 maximum – which immediately results in over +7% more transmitted, non-reflected Power from your Antenna and reduced mismatch loss when compared to many of the commercially available 2:1 VSWR performance.
Antenna designs combined with an excellent 35 +/- 5 degrees (6dBi) signal radiation footprint.
Antenna Connector: N Male
Dimensions:
300mm long

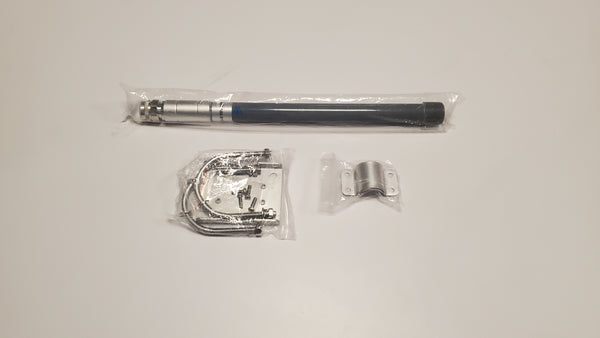

Package Contents:
1x Antenna
1x Mounting Bracket
