SenseCAP Soil Temperature,Moisture and EC Sensor S2105

Regular price $144.00 $0.00 Unit price per
Shipping calculated at checkout.



 ~Pre-order Available~
Will ship BY 7/15

SenseCAP S2105 Soil Temperature, Moisture, and EC Sensor satisfy industrial long-distance data acquisition with a wide range of 0 ~ 100% (m³/m³), -40 ~ 80℃, and 0 to 23 dS/m respectively.
With Bluetooth 5.0 for easy configuration and firmware upgrade and a built-in replaceable battery for minimal maintenance, it also supports three different LoRaWAN network architectures enabling you to easily join it in existing gateways and network servers to build flexible and high-performance sensor network.


PRODUCT DETAILS

Feature

  • Wide measuring range: it can detect temperature range from -40 to +80 °C, soil moisture range from 0 to 100%, and Electrical conductivity range from 0 -23  dS/m.
  • LoRaWAN Wireless Transmission: ultra-low power consumption and ultra-wide-distance transmission range. It has Max.10 years of battery life and can cover a transmission range of 2km in urban scenes and 10km in line of sight scenes
  • Industrial design: -40 ~ 85℃ operating temperature and IP66 rating, suitable for indoor, outdoor, and harsh environments such as high UV exposure, heavy rain, dusty conditions, etc.
  • Over the Air Configuration in 1 min: scan the QR code on the device and just in a few clicks to choose the frequencies you want, all the configuration can be done via Bluetooth
  • Easily get data, no clunky software interfaces: temperature and humidity data can smoothly be sent to your phone and cloud servers or other IoT data management platforms you’re using,
  • Powerful supported SenseCAP APP: you can set threshold value (just focus on the data you need take action for), time intervals (improve the battery efficiency), and set alarms if data is out of the safe range.
  • Flexibly compatible with various LoRaWAN gateways: can be used with different types of LoRaWAN gateways and compatible with multiple LoRaWAN Network Servers (Helium, TTN) to enable our sensor quickly join your current LoRaWAN networks

Description

This LoRaWAN Soil Moisture and Temperature Sensor is compliant with LoRaWAN protocol of v1.0.3 Class A and has wide measuring range and can work in a wide range of scenarios, like weather stations, outdoor farms, tea plantations, greenhouse vegetable plantation.



Why is SenseCAP S210x outstanding in LoRaWAN Sensors?



S210x offers an easy-to-use experience design.


Traditional LoRaWAN Sensors

SenseCAP S210x

Sensors

Parameter Setting

  • need a cable to connect the device to computer; unfriendly to users without technical background
  • no need for a cable; a few clicks on your phone will finish all the configuration work via Bluetooth

Device Status Observation

  • disassemble the device and observe status of the lights on PCBA
  • external buttons and LED on the device, easy to press and observe

Power

  • use customerized battery; can not be accessible on the market
  • some need Wiring Method to power the device
  • the standard D-size Li-SOCL2 battery  available on Amazon and other platforms
  • no need for wires, battery-powered

Frequency offer

  • if you get the wrong frequency, then you will have to change it and bear freight or custom cost
  • each device supports frequency from 863MHz ~928MHz, you can change the frequency any time via your phone

Deployment Test

  • it’s hard to find whether the sensor works during field deployment stage
  • can know the real-time status of your device via your phone

With it, you can be benefited from

Scan-and-Play Simplicity, Easy Configuration via Bluetooth in Just 1 min

Bluetooth 5.0 has reduced many configuration works, no need for connecting it with your computers or do some complicated wiring work. All you need to do is to scan the QR code on the device, and the DevEUI、AppEUI and AppKey will automatically show up on your phone. After a few clicks to set the frequency (because each device supports 7 frequencies, more info is shown below),  the whole configuration process is done!

Individuals who are new to LoRaWAN can quickly get started with this small but powerful IoT wireless temperature and humidity sensor. So, if you’re seeking some wireless temperature and humidity sensors for your smart garden or smart irrigation home projects or you want a wireless air temperature and humidity sensor to detect the ambient air quality for your home or office. This wireless long-range air temperature and humidity sensor is the one you don’t want to miss.

For business, in order to achieve the biggest efficiency, it is important to cut the time and cost that is going to be spent on large scale device deployment and later device maintenance, this wireless LoRa temperature, and humidity sensor can give you a hand on this.

In Q3,  we will release another two advanced functions for you to set time intervals (how often you want to receive the data) and set threshold values (not all the data are valuable and you can focus on the range you need to take action for).

Minimal maintenance cost: power-conscious battery, rugged enclosure and remote data monitoring

SenseCAP S2105 Soil Moisture, Temperature and EC Sensor incorporates a built-in LoRa Module(LoRa-E5) for long-range transmission, and a standard Li-SOCl2 high capacity battery. It is specifically designed and optimized for use cases that need to power end devices for years. To minimize the power consumption, the device wakes up, transmits the collected temperature, humidity and EC data to the gateway, and then goes back to sleep.

Under the best of circumstances, the battery is expected to last for more than 10 years, depending on the environmental factors and data transmission intervals. Please kindly note that the default interval is once per hour. The sensor can quickly replace a new battery by unscrewing just three screws. The battery is a standard Li-SOCl2 battery (type: ER34615) that can purchase from Amazon and other platforms.

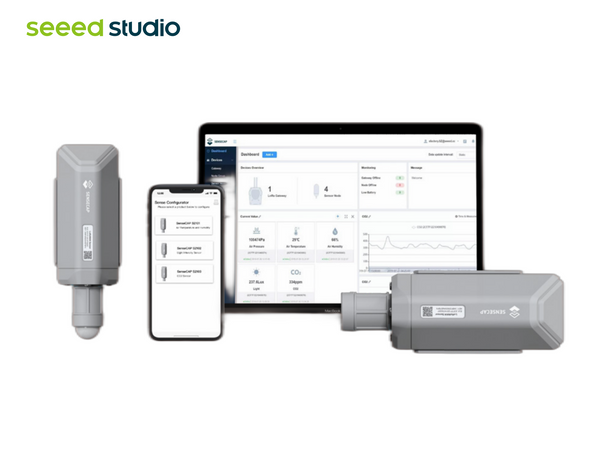

Different data display choices — Open API for different data management consoles

It allows you to check the real-time data on the phone, which gives you the biggest convenience. You can remotely check the data highs & lows.

We provide an easy integration method if you’re using other PaaS to manage your data, such as Microsoft Azure or AWS or your own cloud/Edge servers.


(3 Steps to Get the Data based on SenseCAP Portal)


Strong compatibility: works perfectly with different gateways and network servers

SenseCAP Architecture: SenseCAP ecosystem offers you a no-code and the most time-saving experience

If you’re using our SenseCAP LoRaWAN Outdoor Gateway, then you are successfully building a SenseCAP ecosystem, which means that you can onboard your device just by a simple OTA configuration on your phone. This can be a no-code process and then you can get access to a convenient web-based console.


Helium Network Architecture: make full advantage of the Helium coverage and various powerful IoT data management platforms on the Helium console

Note: if your area is covered by the Helium network, then you can directly use it by integrating the device in the network; if you don’t, you can buy SenseCAP M1/M2 to build your own Helium network

We’re establishing cooperation with many IoT data management platforms such as Ubidots and Datacake in order to provide a more ready-to-use experience to you. You can just choose the platforms you want the data to go directly to on the Helium console and no need for software testing work.


Standard LoRaWAN Architecture: for other LoRaWAN Network Servers and various LoRaWAN gateways on the marketplace

This LoRaWAN Data Logger meets the standard LoRaWAN protocol, so it supports multiple frequency bands and is perfectly compatible with different brands of gateways on the marketplace. If you already have a standard LoRaWAN gateway, you can use this sensor directly.


Applications

  • Gardening grass

In order to have a beautiful garden lawn,  you may need the help of our LoRaWAN soil sensors to better detect the related data of the soil.  The soil moisture, temperature and EC are very important to the growth of grass. If the soil is too wet, the root may get soaked. If it is too dry, the grass will probably grow badly. Also, temperature matters too. Only at an appropriate temperature can grass have its best growth.  And EC can reflect the amount of inorganic salt which is related to the health of the grass. With our wireless sensors which are easy to deploy, you can check the data right on your phone and make the best decision for your lawn.

  • Greenhouse planting

Precisely controlling the soil moisture, temperature and EC may provide the plants with the most suitable condition and may have the Best Growth. In order to achieve more efficient greenhouse planting, our LoRaWAN Soil Moisture, Temperature and EC Sensor will be a good helper. It’s easy to deploy and you can just check the soil-related data of your greenhouse remotely. That is time-saving and convenient for your greenhouse management.

Specifications

Soil Moisture (VWC-Volumetric Water Content)

Range

0 to 100% (air-water)

Accuracy

0 to 50%: ±3%

50 to 100%: ±5%

Resolution

0 to 50%: 0.1%

50 to 100%: 0.5%

Soil Temperature

Range

-40 to +80 °C

Accuracy

0 to 50°C: ±0.5 °C

-40 to 0, 50 to 80°C: ±1 °C

Resolution

0.1 °C

Electrical Conductivity (Only supported in S2105)

Range

0 to 23 dS/m

Accuracy

0 to 5 dS/m: ±5%

5 to 23 dS/m: ±10%

Resolution

0 to 5 dS/m: 0.01dS/m

5 to 23 dS/m: 0.1dS/m

General Parameters

Product Model

S2105

Microcontroller

LoRa-E5

Support Protocol

LoRaWAN v1.0.3 Class A

Built-in Bluetooth

App Tool to change parameters

LoRa Channel Plan

IN865/EU868/US915/AU915/ AS923/KR920/RU864 *

Max Transmitted Power

19dBm

Sensitivity

-136dBm@SF12 BW=125KHz

Communication Distance

2 to10km (depending on gateway antenna and environments)

IP Rating

IP66

Operating Temperature

-40 to +85 °C

Operating Humidity

0 to 100 %RH (non-condensing)

Device Weight

405g

Device Length

5 meters

Certification

CE / FCC / RoHS(Testing certification in progress)

Battery (Contained in equipment)

Battery Life

Up to 10 years**

Battery Capacity

19Ah (non-rechargeable)

Battery Type

Standard D-size SOCl2 Battery

* Every single device can support 7 frequency plans.

**  This wireless LoRaWAN Temperature and Humidity sensor supports up to 10 years of battery life, but the actual battery life varies from data upload interval, data payload and distance between gateways. If you want to optimize the LoRa battery life, you can choose to send a smaller amount of data, send messages less frequently, and keep LoRa spreading factor as low as possible.


LoRa Frequency

Note: No Frequency limitation. Sensor switched to other frequency plans at any time.

S210x Devices are manufactured to support the universal frequency plan from 863MHz ~928MHz in one SKU. That is to say, every single device can support frequency plans below:

Frequency Plan

Common Name

Sub-band

EU863-870

EU868

___

US902-928

US915

Sub-band from 1 to 8

AU915-928

AU915

Sub-band from 1 to 8

AS923

AS923

AS923_1, AS923_2, AS923_3, AS923_4

IN865-867

IN865

___

KR920-923

KR920

___

RU864-867

RU864

___

The frequency plan setting is none by default and it will not transmit RF signal until it has been set by App via Bluetooth at the first power-up. And it can be changed to other frequency plans at any time.

Dimension

Partlist

Sensor

1

Bracket

1

KA4*20mm Self-drilling Screw

4

Waterproof gasket

1

ECCN/HTS

HSCODE 9025800090
UPC
FCC Yes
CE Yes
