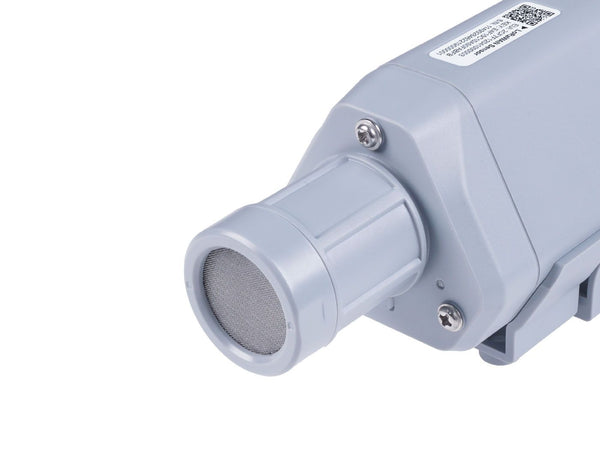

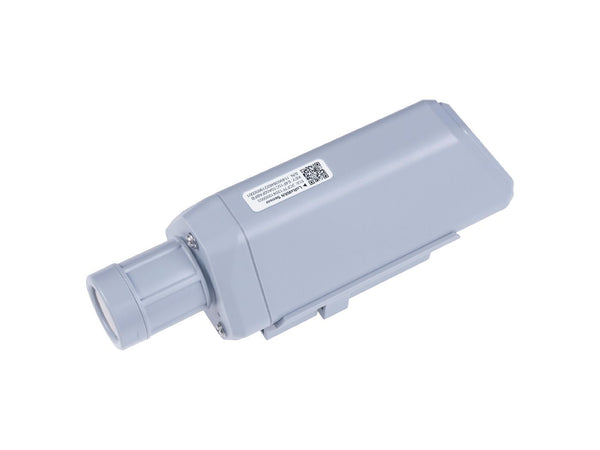

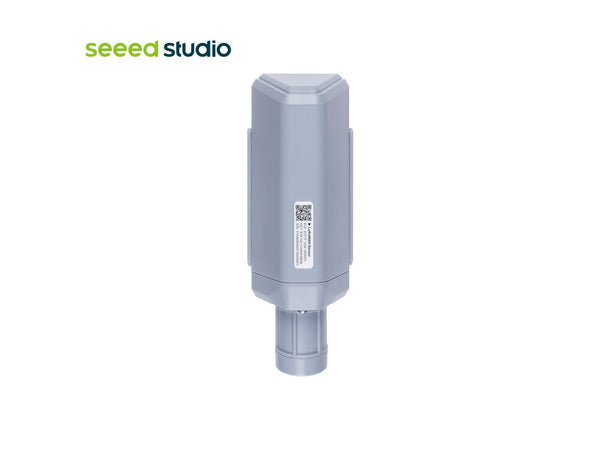

SenseCAP - Temperature and Humidity Sensor - S2101

SenseCAP S2101 LoRaWAN air temperature & humidity sensor satisfies industrial IoT long-range wireless data acquisition with measuring ranges from -40°C to 85°C and 0 to 100 %RH respectively.
It equips with an sht4x temperature and humidity sensor and has Bluetooth 5.0 for OTA configuration, calibration, and firmware upgrade. It supports a universal frequency plan from 863MHz ~928MHz.

PRODUCT DETAILS

Feature

• Wide measuring range: the temperature measuring range is from  -40°C to +85 °C while relative humidity range from 0 to 100 %RH, with the accuracies of ±0.2 °C and ±1.8 %RH respectively. The resolution is 0.01 °C and 0.01 %RH
• LoRaWAN Wireless Transmission: ultra-low power consumption and ultra-wide-distance transmission range. It has Max.10 years of battery life and can cover a transmission range of 2km in urban scenes and 10km in line of sight scenes
• Industrial design: -40 ~ 85℃ operating temperature and IP66 rating, suitable for indoor, outdoor, and harsh environments such as high UV exposure, heavy rain, dusty conditions, etc.
• Over the Air Configuration in 1 min: scan the QR code on the device and just in a few clicks to choose the frequencies you want, all the configuration can be done via Bluetooth
• Easily get data, no clunky software interfaces: temperature and humidity data can smoothly be sent to your phone and cloud servers or other IoT data management platforms you’re using,
• Powerful supported SenseCAP APP: you can set threshold value (just focus on the data you need take action for), time intervals (improve the battery efficiency), and set alarms if data is out of the safe range.
• Flexibly compatible with various LoRaWAN gateways: can be used with different types of LoRaWAN gateways and compatible with multiple LoRaWAN Network Servers (Helium, TTN) to enable our sensor quickly join your current LoRaWAN networks

Description

This LoRaWAN Air Temperature and Humidity sensor is compliant with LoRaWAN protocol of v1.0.3 Class A and has a wide measuring range and can work in harsh environments, like industrial manufacturing or refrigerator monitoring.

Why is SenseCAP S210x outstanding in LoRaWAN Sensors?

S210x offers an easy-to-use experience design.

With it, you can be benefited from:

Scan-and-Play Simplicity, Easy Configuration via Bluetooth in Just 1 min

Bluetooth 5.0 has reduced many configuration works, no need for connecting it with your computers or doing some complicated wiring work. All you need to do is to scan the QR code on the device, and the DevEUI、AppEUI and AppKey will automatically show up on your phone. After a few clicks to set the frequency (because each device supports 7 frequencies, more info is shown below),  the whole configuration process is done!

For individuals who are new to LoRaWAN, they can quickly get started with this small but powerful IoT wireless temperature and humidity sensor. So, if you’re seeking some wireless temperature and humidity sensors for your smart garden or smart irrigation home projects or you want a wireless air temperature and humidity sensor to detect the ambient air quality for your home or office. This wireless long-range air temperature and humidity sensor is the one you don’t want to miss.

For business, in order to achieve the biggest efficiency, it is important to cut the time and cost that is going to be spent on large scale device deployment and later device maintenance, this wireless LoRa temperature, and humidity sensor can give you a hand on this.

In Q3,  we will release another two advanced functions for you to set time intervals (how often you want to receive the data) and set threshold values (not all the data are valuable and you can focus on the range you need to take action for).

Minimal maintenance cost: power-conscious battery, rugged enclosure and remote data monitoring

SenseCAP S2101 air temperature and humidity sensor incorporates a built-in LoRa Module(LoRa-E5) for long-range transmission, an air temperature and humidity sensor(sht4x), and a standard Li-SOCl2 high capacity battery. It is specifically designed and optimized for use cases that need to power end devices for years. To minimize the power consumption, the device wakes up, transmits the collected temperature and humidity data to the gateway, and then goes back to sleep.

Under the best of circumstances, the battery is expected to last for more than 10 years, depending on the environmental factors and data transmission intervals. Please kindly note that the default interval is once per hour. The sensor can quickly replace a new battery by unscrewing just three screws. The battery is a standard Li-SOCl2 battery (type: ER34615) that can purchase from Amazon and other platforms.

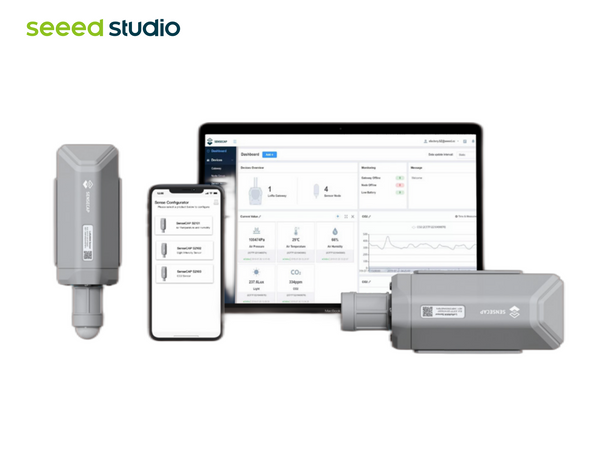

Different data display choices — Open API for different data management consoles

It allows you to check the real-time data on the phone, which gives you the biggest convenience. You can remotely check the data highs & lows.

We provide an easy integration method if you’re using other PaaS to manage your data, such as Microsoft Azure or AWS or your own cloud/Edge servers.

3 Steps to Get the Data based on SenseCAP Portal

Strong compatibility: works perfectly with different gateways and network servers

SenseCAP Architecture: SenseCAP ecosystem offers you a no-code and the most time-saving experience

If you’re using our SenseCAP LoRaWAN Outdoor Gateway, then you are successfully building a SenseCAP ecosystem, which means that you can onboard your device just by a simple OTA configuration on your phone. This can be a no-code process and then you can get access to a convenient web-based console.

Helium Network Architecture: make full advantage of the Helium coverage and various powerful IoT data management platforms on the Helium console

Note: if your area is covered by the Helium network, then you can directly use it by integrating the device in the network; if you don’t, you can buy SenseCAP M1/M2 to build your own Helium network

We’re establishing cooperation with many IoT data management platforms such as Ubidots and Datacake in order to provide a more ready-to-use experience to you. You can just choose the platforms you want the data to go directly to on the Helium console and no need for software testing work.

Standard LoRaWAN Architecture: for other LoRaWAN Network Servers and various LoRaWAN gateways on the marketplace

This LoRaWAN air temperature and humidity sensor meet the standard LoRaWAN protocol, so it supports multiple frequency bands and is perfectly compatible with different brands of gateways on the marketplace. If you already have a standard LoRaWAN gateway, you can use this sensor directly.

Applications

You can count on our sensor to monitor air temperature and humidity and build your own seamless end-to-end (sensor to cloud app) solution in food storage and services, facilities, vaccine fridges, and HVAC systems.





HVAC Optimization

HVAC failure can cause health concerns due to heat, mold, and bacteria growth. SenseCAP S2101 Air Temperature and humidity sensor can help you remotely monitor air temperature and humidity and enable you to identify potential issues with eligible heating, ventilation, and air conditioning (HVAC) systems. If a potential issue is detected, we'll send you an alert via phone.



Ambient Temperature and Humidity Sensor

The ambient air quality significantly influences our life. Evidence shows that keeping air relative humidity between 40% to 60% has significant benefits on human health. With this SenseCAP S2101 air temperature and humidity sensor acting as an air quality detector, you are not only able to obtain the real-time air temperature and relative humidity data via your phone, but you can see the temperature and relative humidity changing curve in the past few months.



Warehouse Conditions Monitoring

Long exposure to the wrong temperature or humidity may cause damage to some products that are sensitive to ambient conditions like medicine or food, which will be a large loss for the company. With SenseCAP S2101 air temperature and humidity sensor, you can better remotely monitor the ambient temperature and humidity conditions and set alarms once they are beyond the safe range.



Specifications

Air Temperature
Range	-40 to +85 °C
Accuracy	±0.2 °C
Resolution	0.01 °C
Long-term Drift	<0.03 °C/year
Air Humidity
Range	0 to 100 %RH
Accuracy	±1.8 %RH
Resolution	0.01 %RH
Long-term Drift	<0.25 %RH/year
General Parameters
Product Model	S2101
Microcontroller	LoRa-E5
Support Protocol	LoRaWAN v1.0.3 Class A
Built-in Bluetooth	App Tool to change parameters
LoRa Channel Plan	IN865/EU868/US915/AU915/ AS923/KR920/RU864 *
Max Transmitted Power Sensitivity	19dBm
Sensitivity	-136dBm@SF12 BW=125KHz
Communication Distance	2 to10km (depending on gateway antenna and environments)
IP Rating	IP66
Operating Temperature	-40 to +85 °C
Operating Humidity	0 to 100 %RH (non-condensing)
Device Weight	280g
Certification	CE / FCC / RoHS（Testing certification in progress）
Battery (Contained in equipment)
Battery Life	Up to 10 years**
Battery Capacity	19Ah (non-rechargeable)
Battery Type	Standard D-size SOCl2 Battery

* Every single device can support 7 frequency plans.

**  This wireless LoRaWAN Temperature and Humidity sensor supports up to 10 years of battery life, but the actual battery life varies from data upload interval, data payload and distance between gateways. If you want to optimize the LoRa battery life, you can choose to send a smaller amount of data, send messages less frequently, and keep LoRa spreading factor as low as possible.





LoRa Frequency

Note: No Frequency limitation. Sensor switched to other frequency plans at any time.

S210x Devices are manufactured to support the universal frequency plan from 863MHz ~928MHz in one SKU. That is to say, every single device can support the frequency plans below:

Frequency Plan	Common Name	Sub-band
EU863-870	EU868	___
US902-928	US915	Sub-band from 1 to 8
AU915-928	AU915	Sub-band from 1 to 8
AS923	AS923	AS923_1, AS923_2, AS923_3, AS923_4
IN865-867	IN865	___
KR920-923	KR920	___
RU864-867	RU864	___

The frequency plan setting is none by default and it will not transmit RF signal until it has been set by App via Bluetooth at the first power-up. And it can be changed to other frequency plans at any time.

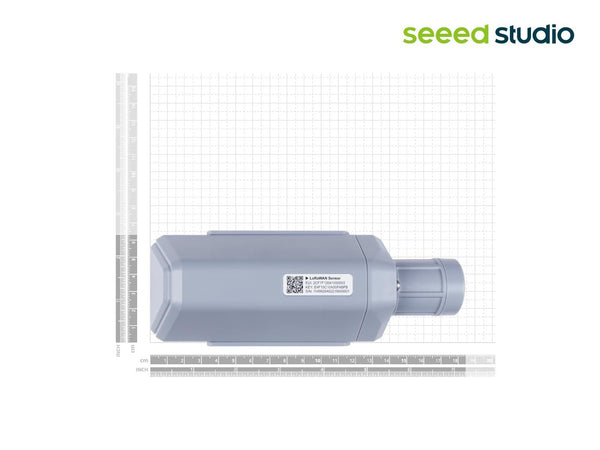

Dimension

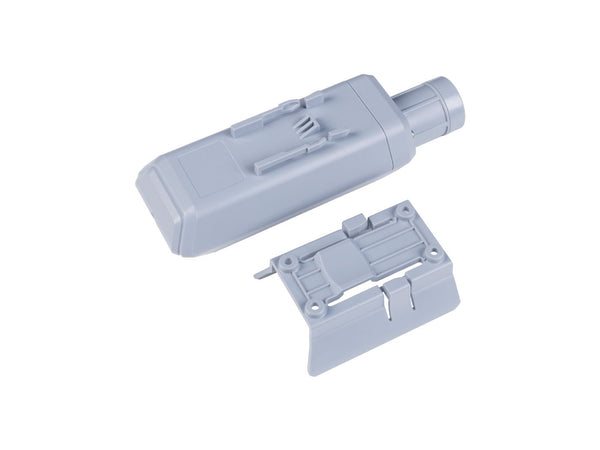

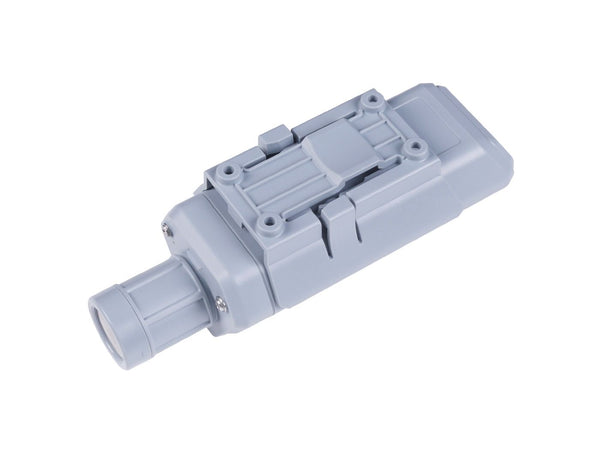

Partlist

Sensor	1
Bracket	1
KA4*20mm Self-drilling Screw	4
Waterproof gasket	1



ECCN/HTS

HSCODE	9025800090
UPC

FCC	Yes
CE	Yes
