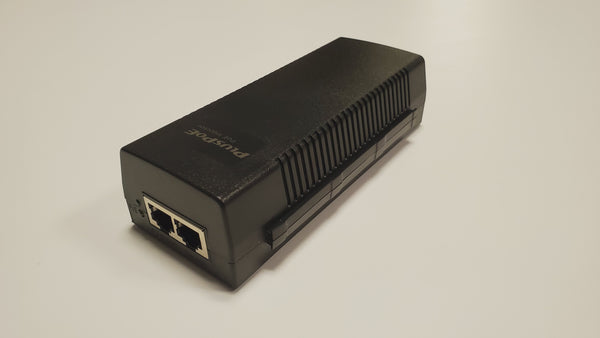

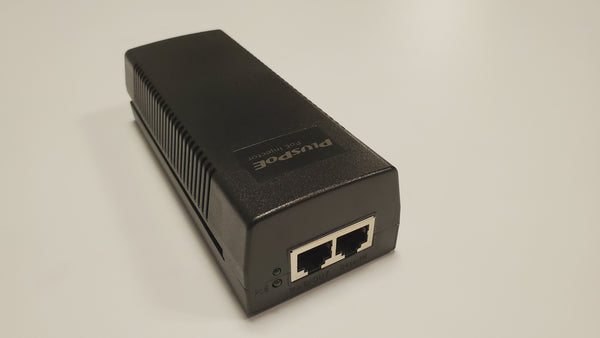

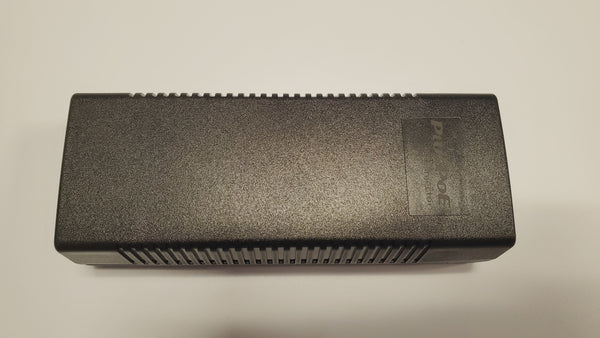

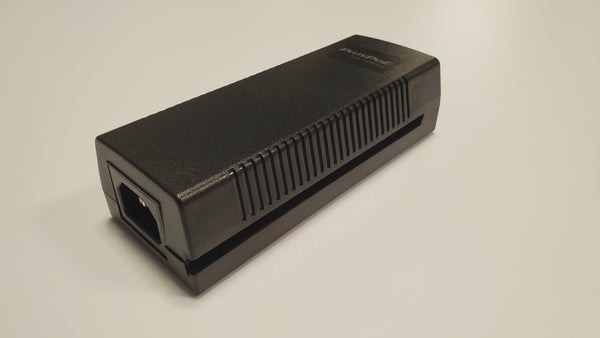

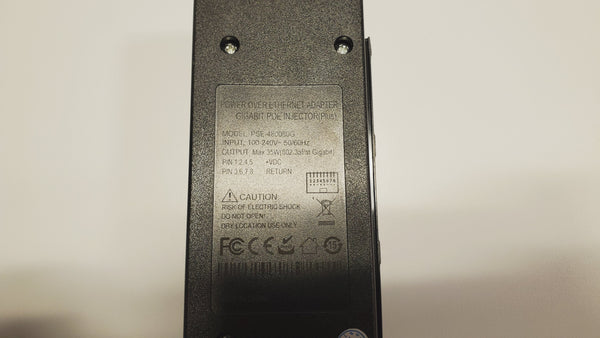

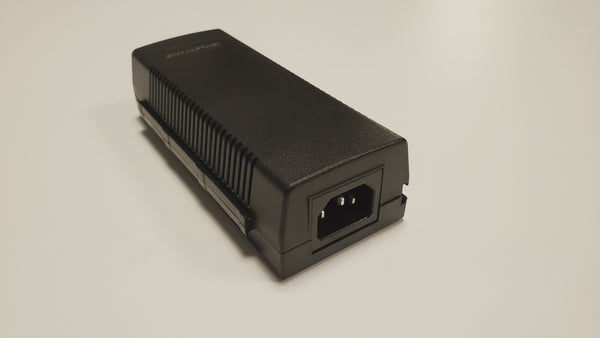

PoE+ Injector - 30w - 802.3af/at Gigabit

Features:

30W PoE ++ Injector Converts a non-PoE Gigabit port to a PoE+Gigabit port and network a PoE device located up to 100 meters Away. If you have a PoE + (802.3at/af) standard device, and need to use PoE technology to provide it with both network and power, this PoE adapters your best choice.

• Gigabit Ethernet Speed. This PoE injector equipped with 1 Gigabit Ethernet port input and 1 PoE Gigabit Ethernet port output.


• Auto-sensing Technology delivers up to 30W to an 802.3at PoE device with backwards compatibility for 802.3af PoE (15.4 Watts) devices. It can detect POE equipment and non-POE equipment. For POE equipment that meets 802.3af standards , it will communicate with the equipment and provide appropriate power. For non-standard POE equipment, it will automatically detect and actively power off to protect the equipment.


• Plug & play, no configuration is needed, simply connect a PoE network device, accommodates most installations scenarios.Whether you want to use it with an IP camera in your home or work place, a VoIP phone used in a conference room, or use it to provide power and network to a wireless AP, it is very suitable as long as your device is 802.3 af/at standard.

Specifications:

Input: 100-240VAC,

Inlet plug: IEC320-C14

Output: 48V-56V 30W (802.3at/af)

Compatible for 10/100/1000Mbps;

Full Protection Short circle, over current, over load, over voltage;

With LED indicator;

Power feed Pins:  1/2+; 3/6- &  4/5+, 7/8-;

Data Pins: 1,2,3,6;4,5,7,8

Dimension: 145x60x40 mm

CE FCC approved

Package List:

1x  Gigabit POE injector for 802.3at/af Devices (30W)

1x US AC Power Cord.
